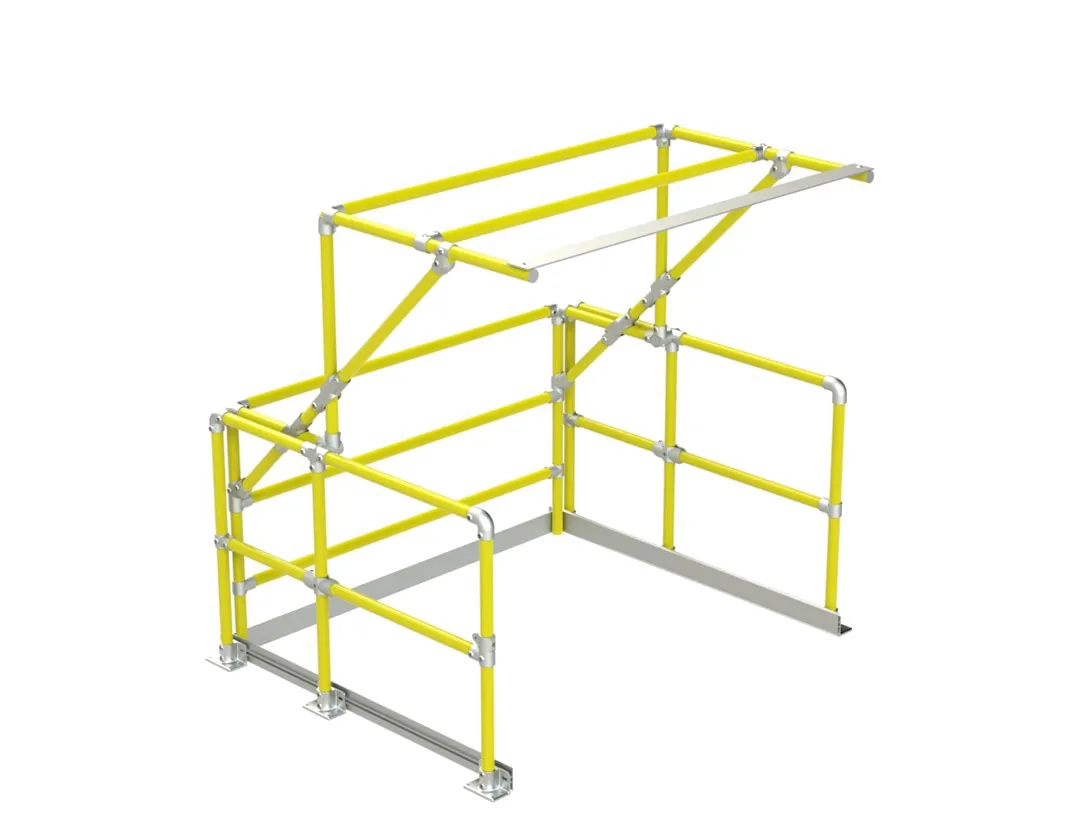

Mezzanine Pallet Safety Gates
Pallet Gates are a part of Kee Safety’s KEE GATE product range, they have been designed to provide a safe access solution for factory and warehouse workers who are responsible for loading and unloading pallets onto mezzanine floors or raised working surfaces.
Transporting pallets around factories and warehouses can present a number of safety issues. This is particularly apparent when the worker has to load and unload pallets on mezzanine floors, as this could result in a fall from height. Our pallet gates eliminate this safety issue, as they provide a simple solution that results in employees always being separated from the hazard.
Kee Safety’s pallet gates are designed to fit seamlessly into a new or existing guardrail or barrier and ensure there is continuous protection in place while goods are being moved either up to or down from the mezzanine.
Assured Quality
To ensure that our mezzanine pallet safety gates are reliable and comply with international standards, the products undergone stringent testing. Pallet gates have been cycle tested for 50,000 openings to ensure their durability and salt spray tested for corrosion resistance to 672 hours. This allows ensure continuous operation, even in corrosive environments. All test reports are available upon request.
KEE GATE Pallet Gates are constructed using KEE KLAMP and KEE LITE fittings. Due to the nature of the system, in the event of the pallet safety gate being damaged from a forklift or general use, the individual fittings can be easily replaced.

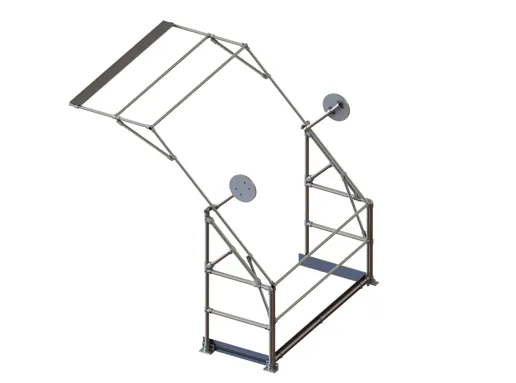

All pallet gates are counter-balanced for ease of use and to ensure a positive open and close.
Features and Benefits
- Compliant with EN 14122-3 and OSHA requirements for assured safe operation
- Available in Galvanised Steel or Aluminium, dependant on customer requirements
- Built using KEE KLAMP and KEE LITE fittings - TUV approved components for quality assurance
- No welded parts so any damage can be easily repaired, keeping the gate operational
- Cycle tested for 50,000 openings for assured durability
- Salt spray tested for corrosion resistance (672 hours) to allow continuous operation even in corrosive environments
- Minimal number of moving parts for lower maintenance
- Will be supplied part assembled to facilitate on site installation
Pallet Gates – Available Options
Our Pallet Gates range includes four different models to suit varying types of operational requirements and is lightweight and counter-balanced for ease of operation.

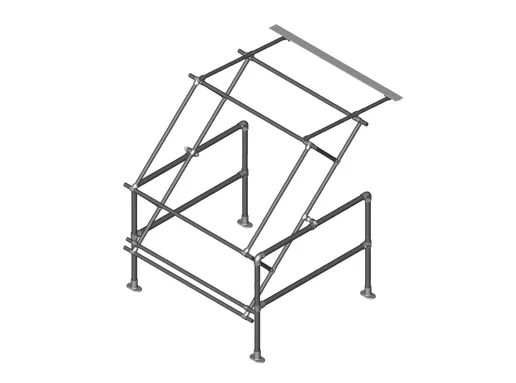

Pallet Gate Type A – Standard Model
The Pallet Gate Type A is balanced for a positive open and close action. A toe-board is mounted on mezzanine edge side to protect workers below.
This gate accepts pallets up to 1.4m x 1.48m with a maximum height capacity of 1.6m.

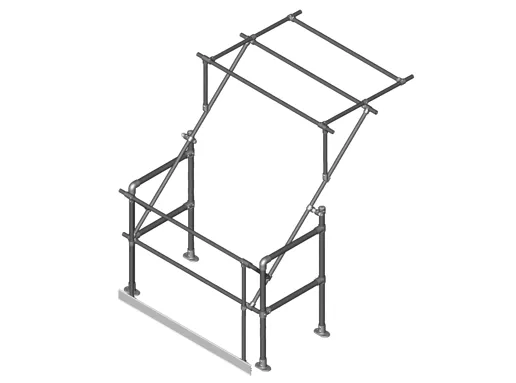

Pallet Gate Type B – Narrow Frame Model
The Pallet Gate Type B is perfect for use on mezzanines where space is limited. The design of this gate means less floor space is required to load and unload pallets. The gate is balanced for a positive open and close action. A toe-board is mounted on mezzanine edge side.
This gate accepts pallets up to 1.4m x 1.48m with a maximum height capacity of 1.8m.

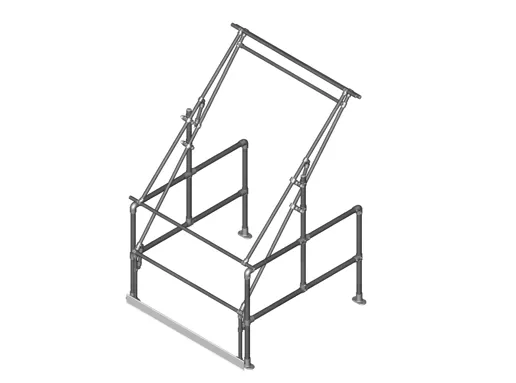

Pallet Gate Type C – Tall Pallet Model
The Pallet Gate Type C offers the tallest capacity of the Kee Gate Pallet Gates. The cantilever design of this gate provides maximum height with minimal ceiling height requirement. Balanced for a positive open and close action. A toe-board is mounted on mezzanine edge side.
This gate accepts pallets up to 1.4m x 1.48m with a maximum height capacity of 2.2m.

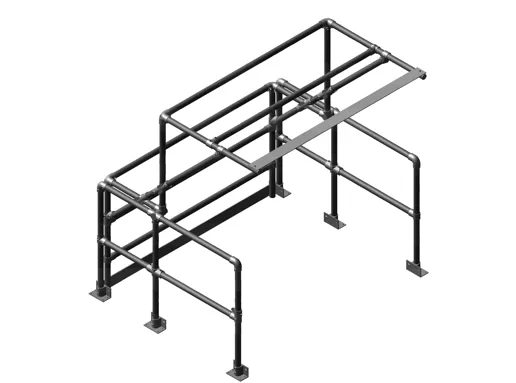

Pallet Gate Type D – Extra Wide Model
The Pallet Gate Type D offers the widest load capacity of the Kee Pallet Gates range. The design of this gate provides maximum load width, whilst also offering 2m head clearance for workers. The gate type D is made from Aluminium and is balanced for a positive open and close action. A toe-board is mounted on all sides to protect the gate from pallet contact.
This gate accepts pallets up to 1.4m x 1.9m with a maximum height capacity of 1.6m.
Product Codes
| Product Code | Product Description | Weight |
|---|---|---|
| SGPGTYAGV | Type A Pallet Gate Galvanised | 91.00Kg |
| SGPGTYAPC | Type A Pallet Gate Powder Coated | 91.00Kg |
| SGPGTYBGV | Type B Pallet Gate Galvanised | 85.00Kg |
| SGPGTYBPC | Type B Pallet Gate Powder Coated | 85.00Kg |
| SGPGTYCGV | Type C Pallet Gate Galvanised | 125.00Kg |
| SGPGTYCPC | Type C Pallet Gate Powder Coated | 125.00Kg |
| SGPGTYDAL | Type D Pallet Gate Aluminium | 77.00Kg |
