Kee Kwik® - Safety Railing Kits

Speed your way to great protection

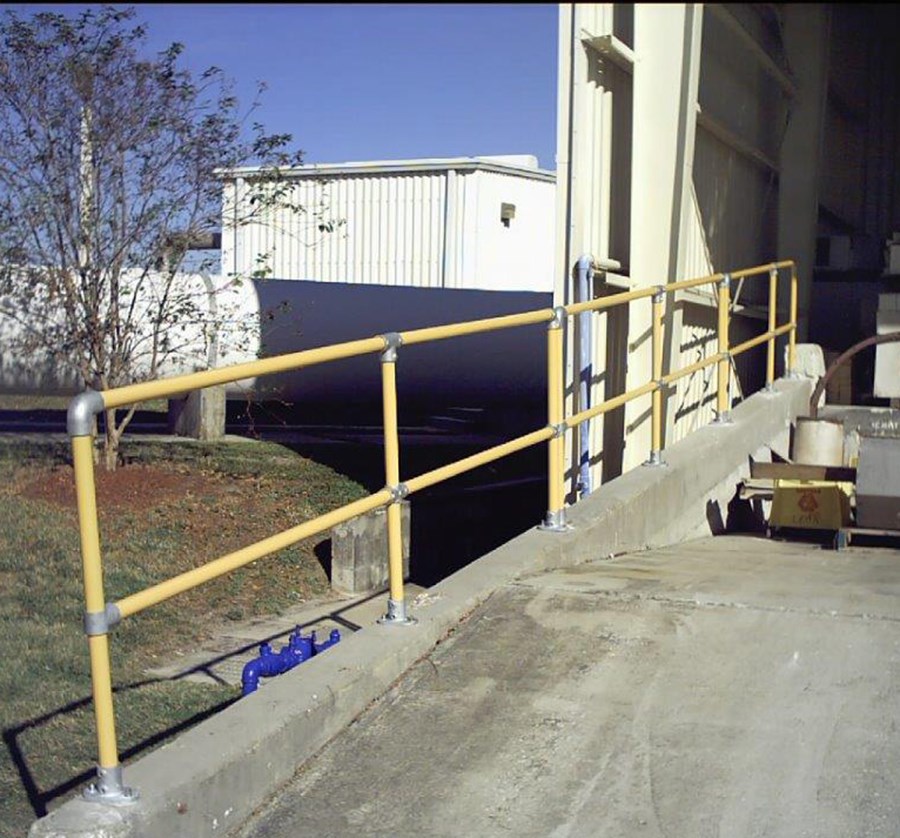

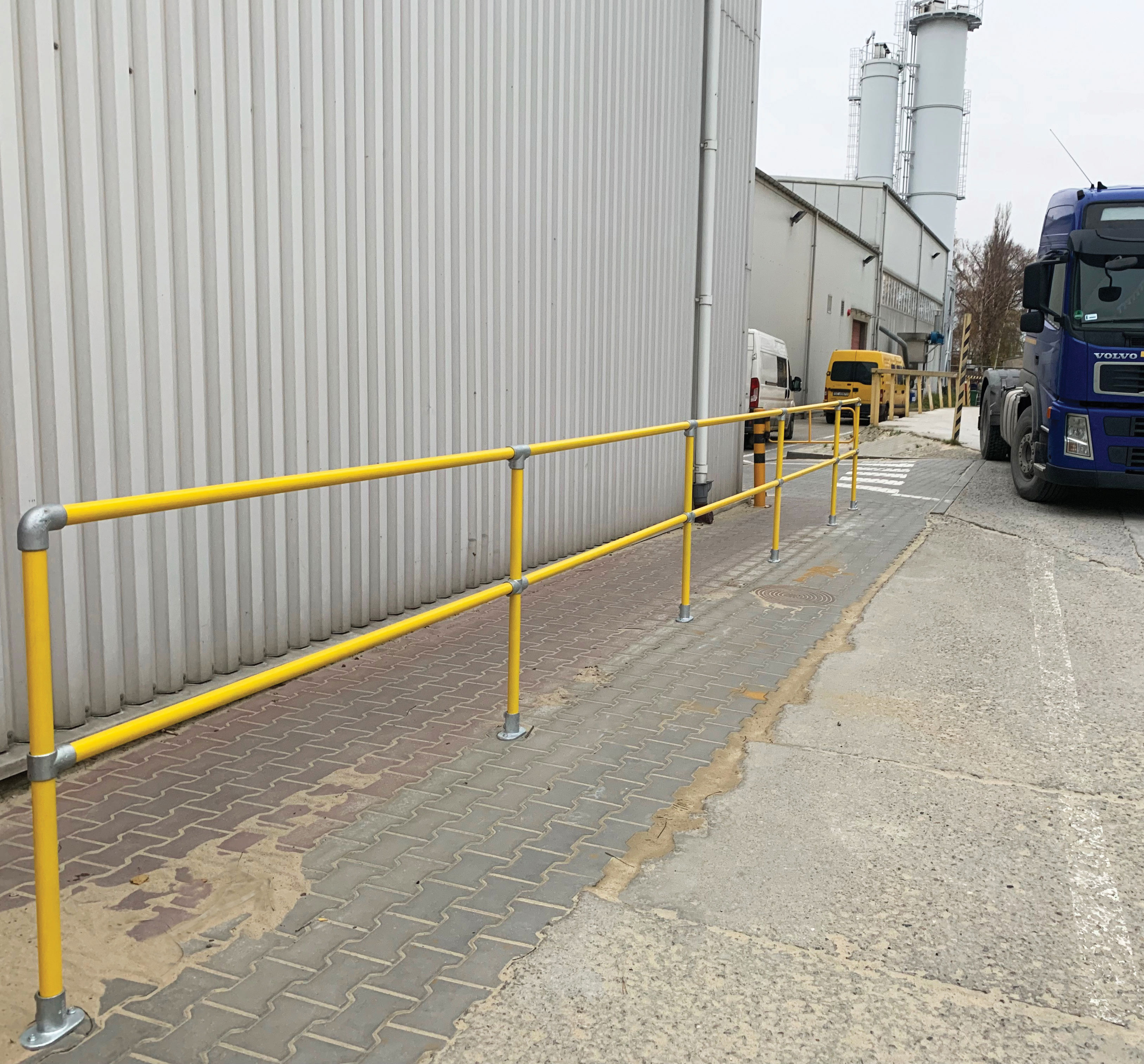

Quickly protect workplace areas and provide a safe environment with the Kee Kwik^® railing. There is no need to weld or bend tubing because the pre-assembled uprights make installation speedy and simple. Safety Yellow coating comes as standard, making the railing highly visible.

Why do you need Kee Kwik^®?

Easy to Install

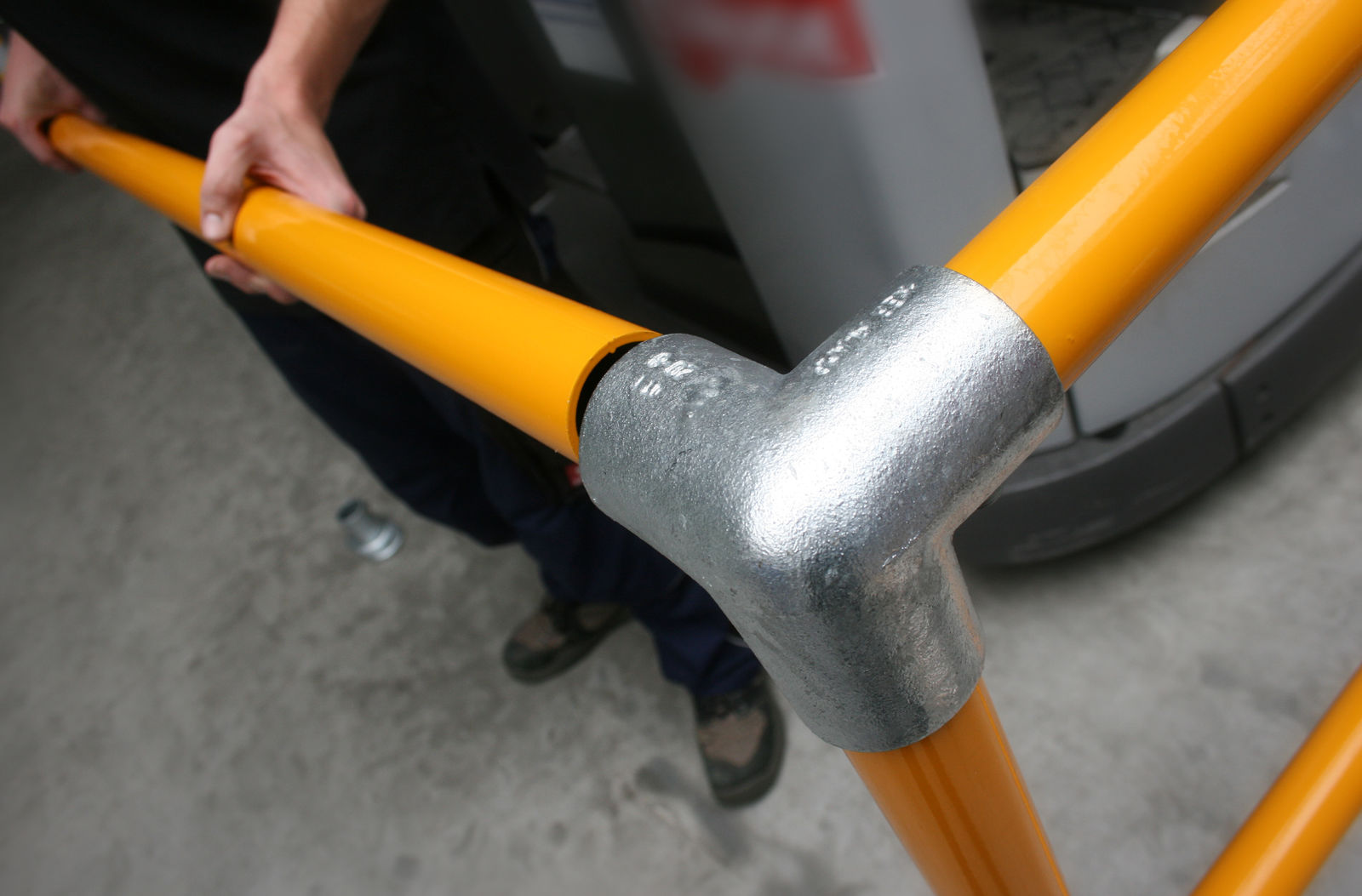

Install the Kee Kwik^® using a standard hex key to tighten the large, easy-to-use set screws. This simple hand tool is essentially all you need to create a sturdy railing system – there’s no welding or threading. And because your uprights are pre-assembled, installation is fast.

Easy to Adapt

By using a combination of our straight, corner and extension kits, you can achieve almost any standard railing configuration. Rails can also be cut where shorter sections are required and are available in both galvanised steel and aluminium.

Easy to Stay Safe

The safety yellow coating makes the Kee Kwik^® highly visible. Our safety coating is applied on top of galvanisation to ensure maximum corrosion resistance. Kee Kwik^® exceeds EN and OSHA standards and utilises reliable Kee Klamp^® or Kee Lite^® safety components.

Key Features

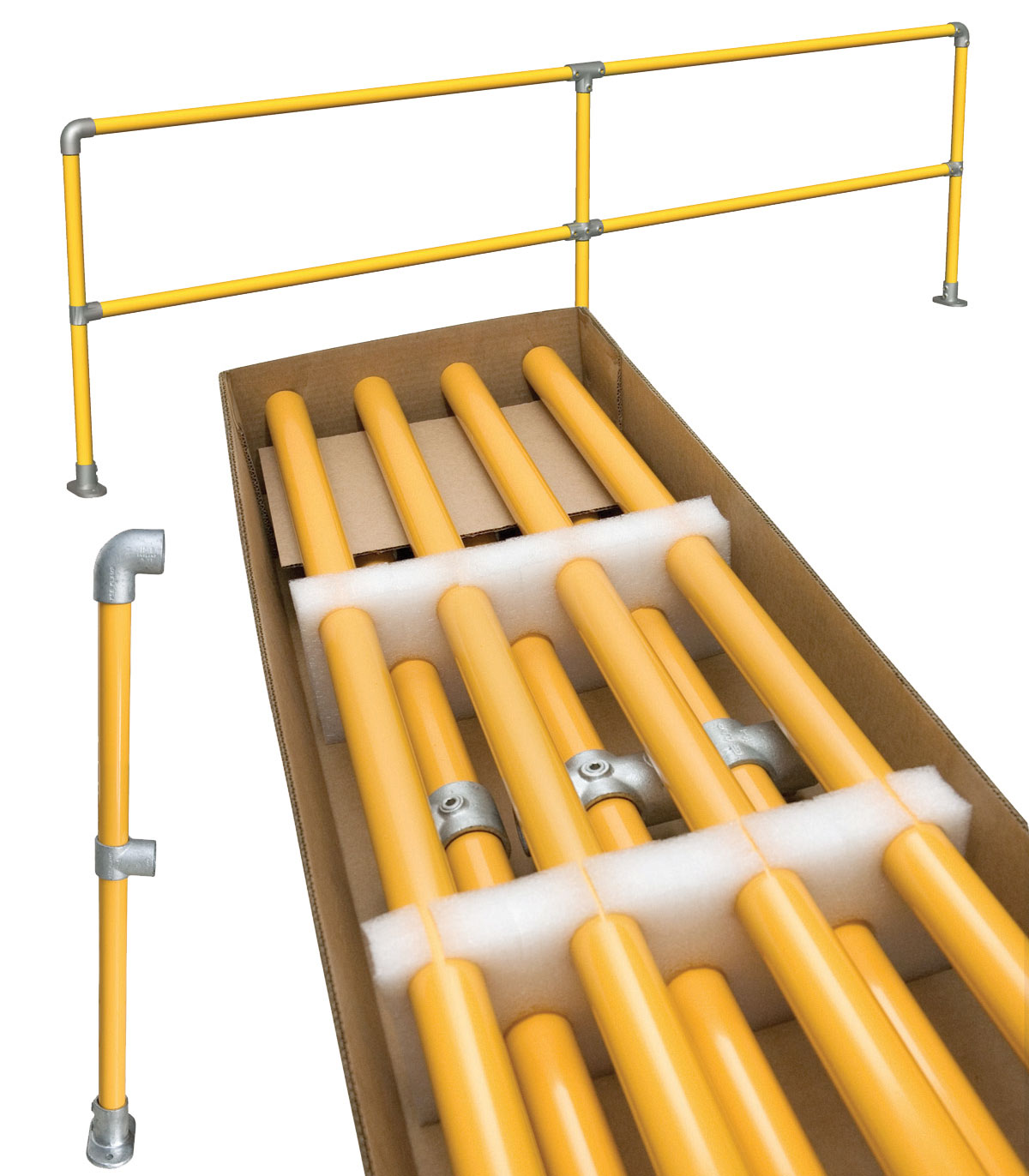

Pre-assembled Uprights

Make installation simple and quick with the pre-assembled uprights.

Powder Coated Safety Yellow

High visibility safety yellow powder coating is used.

Utilises Engineered Components

Market-leading and reliable Kee Klamp^® or Kee Lite^® safety components are used.

Angle Adjustment

There is a variable angle adjustment for step and ramp kits.

Corrosion Protected

Our safety yellow coating in applied on top of corrosion-resistant tube for maximum protection.

Highest standards for safety railing

Exceeds EN and OSHA requirements for safety railings
Satisfies 0.36 kN/m as stated in BS6180
Visible advantage of safety yellow
Utilises reliable Kee Klamp^® or Kee Lite^® fittings
Fitted with Kee Koat^® corrosion protected grub screws and Thread Koat recess protection

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centers at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.

Kee Kwik Models

All kits available in galvanised steel or self-color aluminum.

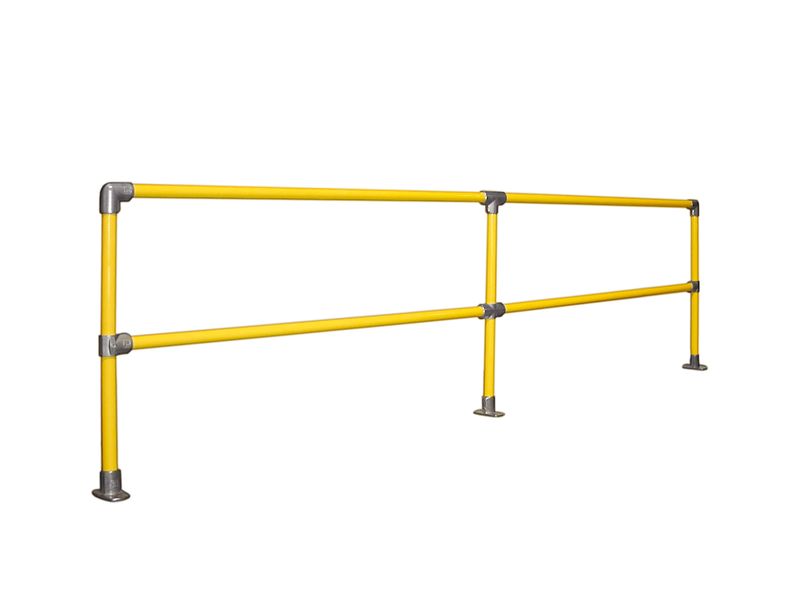

Straight Kit

Kee Kwik Straight Kit is a straight section of 48.3mm diameter galvanised steel or aluminium handrailing 3000mm long, with three uprights and flat fix baseplates. You can extend the length of this railing through the use of an extension kit.

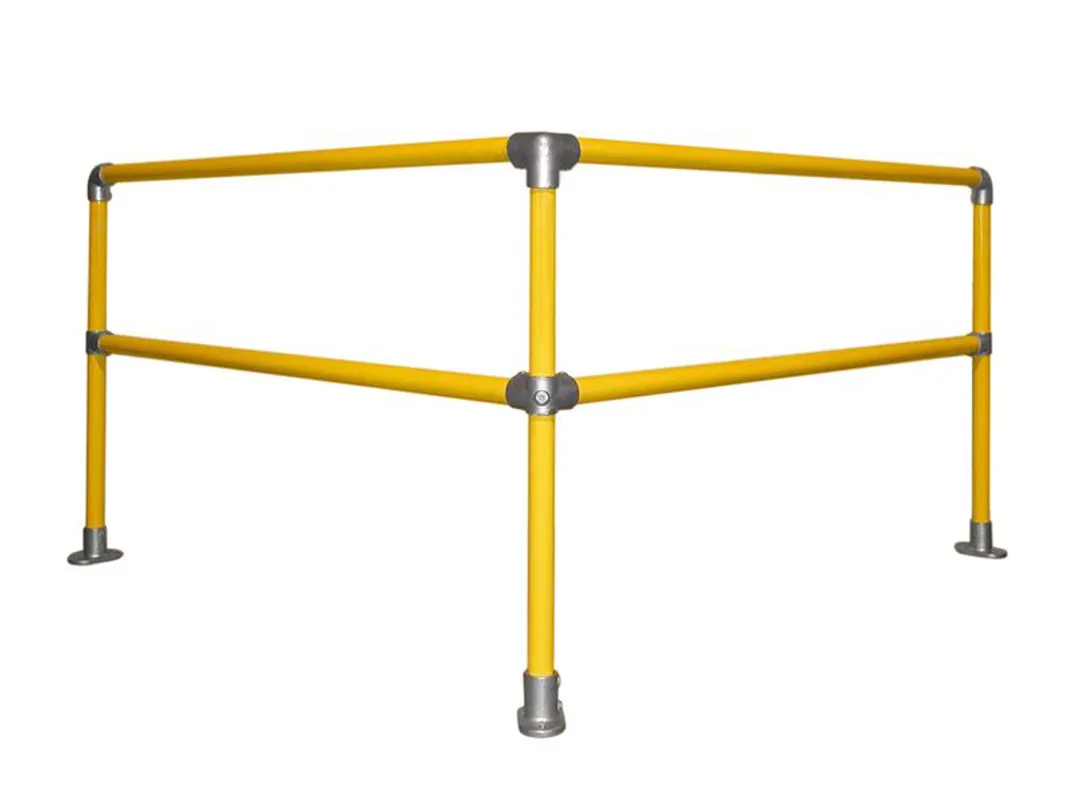

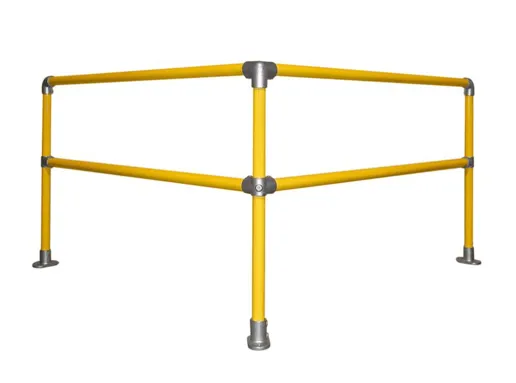

Corner Kit

Kee Kwik Corner Kit is a corner section of 48.3mm diameter galvanised steel or aluminium handrailing 1500mm long x 1500mm long, with three uprights and flat fix baseplates.

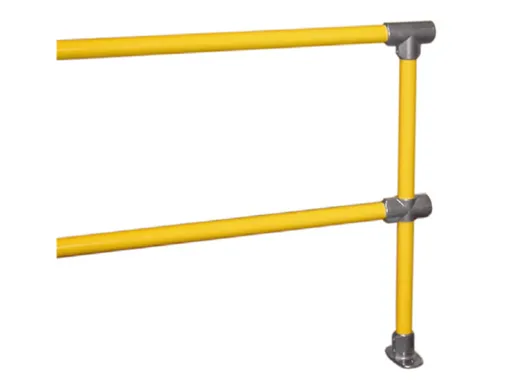

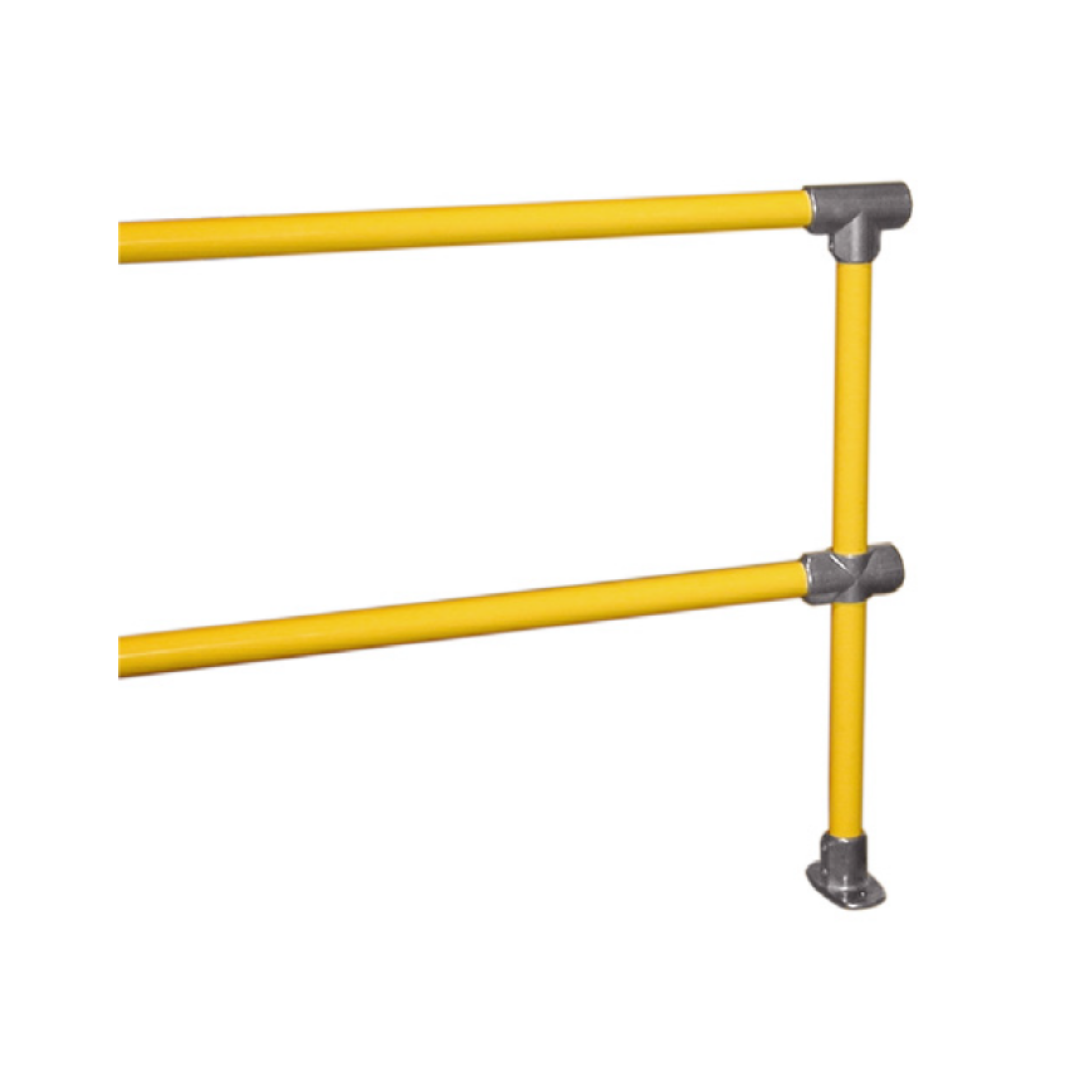

Extension Kit

Kee Kwik Extension Kit comprises 48.3mm diameter galvanised steel or aluminium handrailing 2000mm long with one upright and a flat fix baseplate. This kit enables the extension of the Straight Kit and Corner Kit railings.

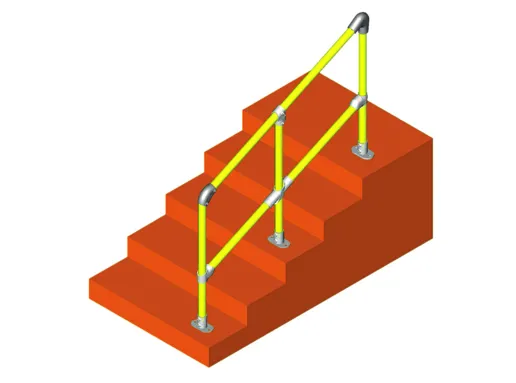

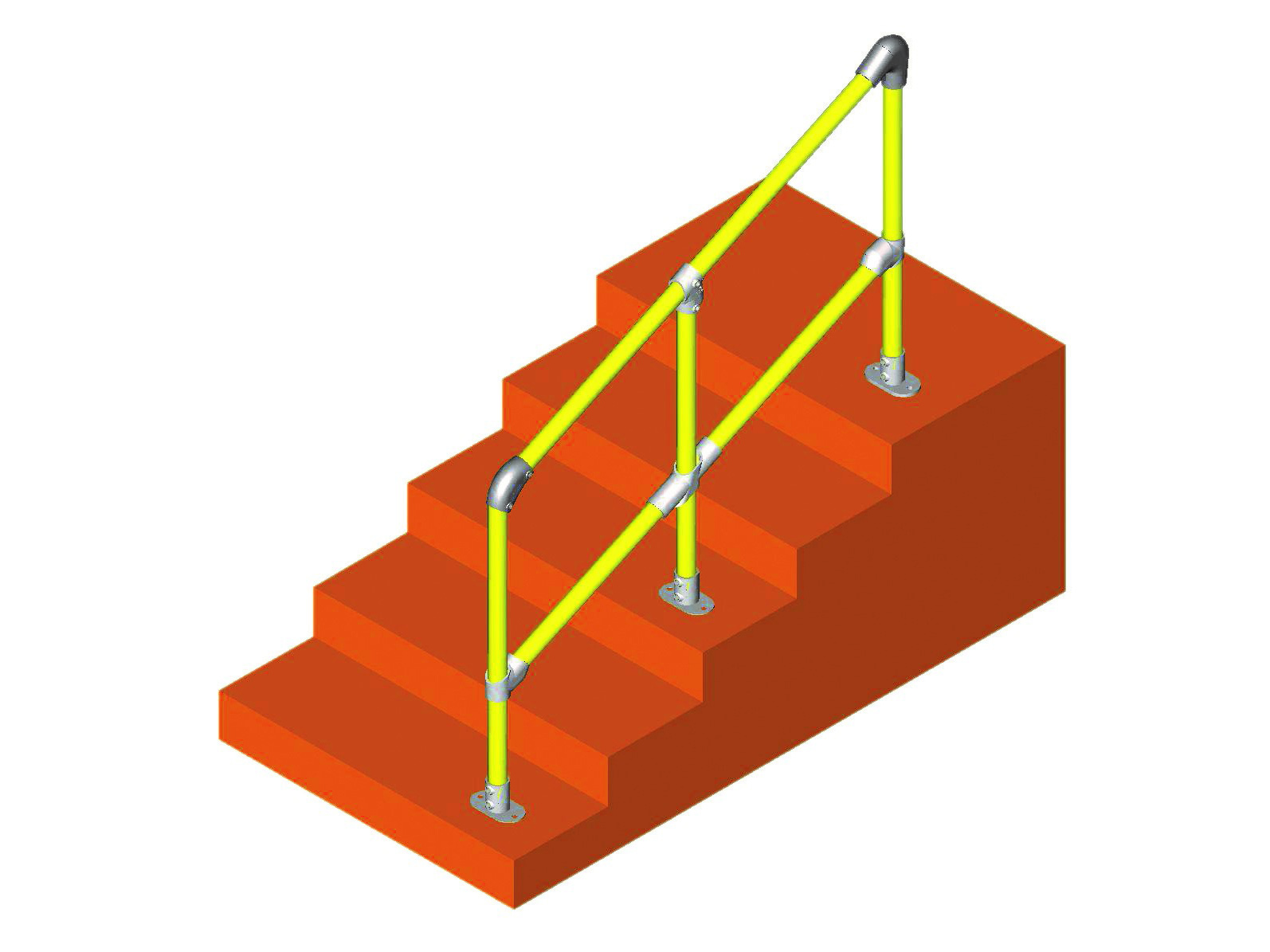

Steel Step Kit

Kee Kwik Steel Step Kit is a step section of 48.3mm diameter galvanised steel handrailing 3000mm long with three uprights and flat fix baseplates. The handrail accommodates variable step inclines from 30—45 degrees.

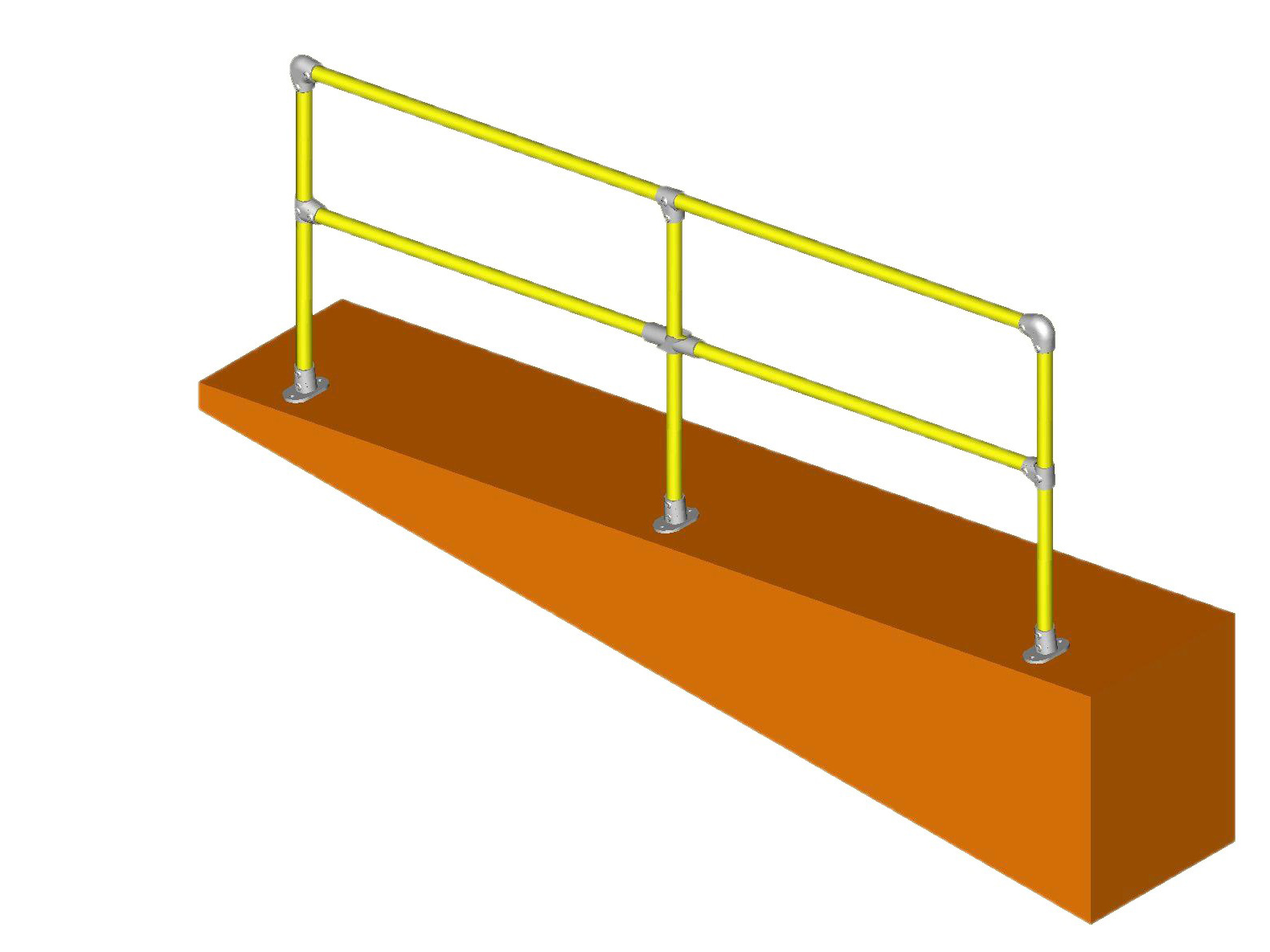

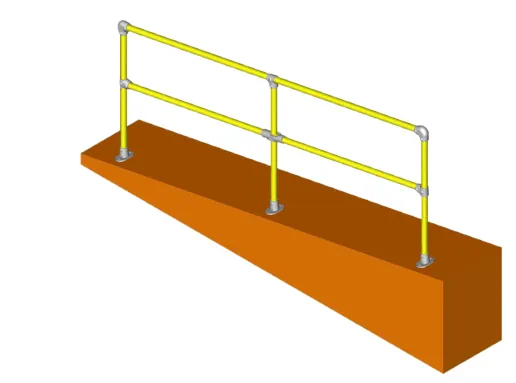

Steel Ramp Kit

Kee Kwik Steel Ramp Kit is a ramp section of 48.3mm diameter galvanised steel handrailing 3000mm long with three uprights and angled flat fix baseplates. The handrail accommodates variable ramp inclines from 0—11 degrees.

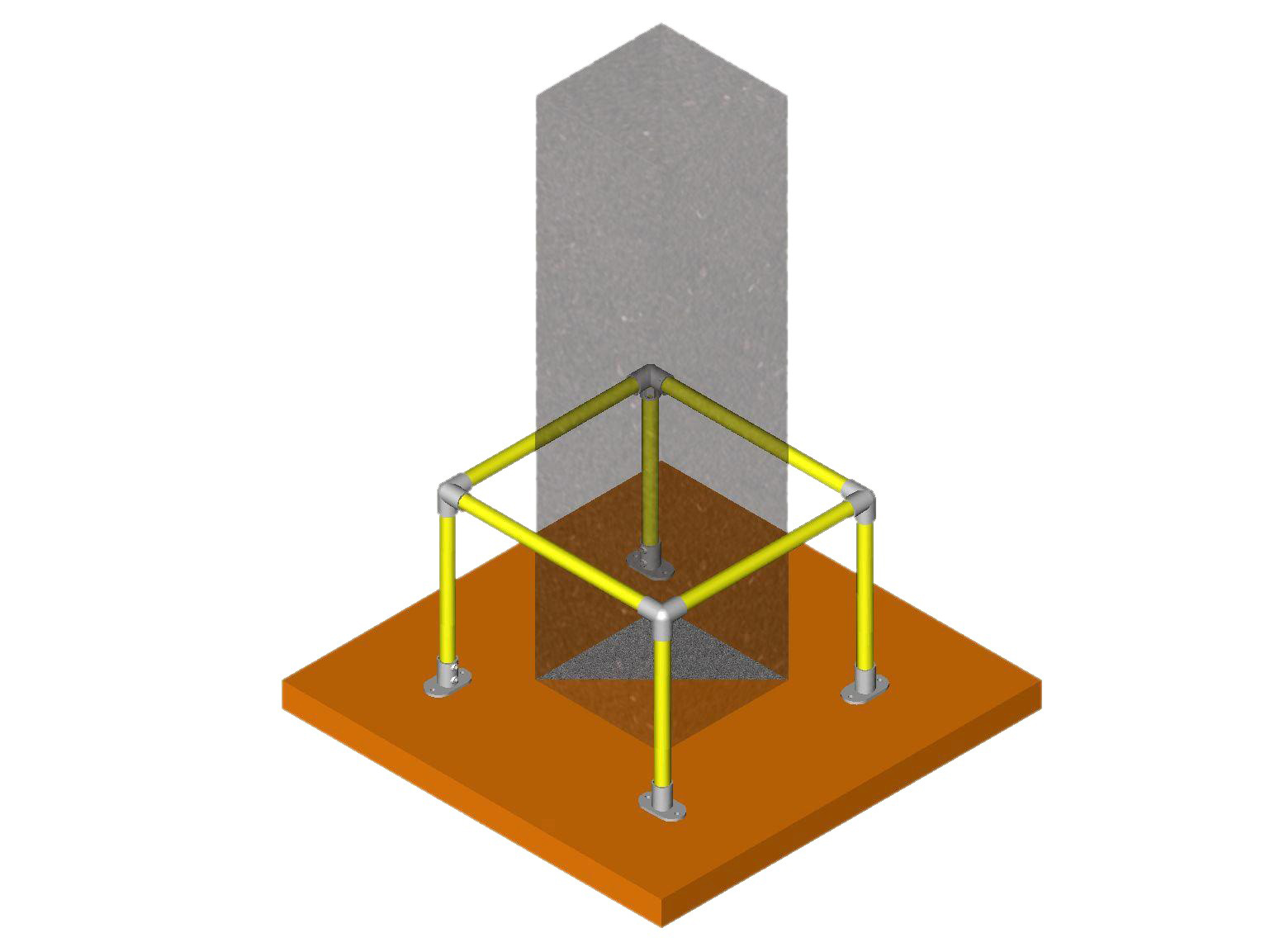

Column Guard Kit

Kee Kwik Column Guard Kit is a Column Guard manufactured from 48.3mm diameter galvanised steel tube, 800mm square with four uprights and flat fix baseplates. The horizontal rails are designed long and can be cut down on site to suit actual column dimensions.

Kee Kwik Downloads

Document	Format
Kwik Kit Safety Railing Kits	PDF Download

Document	Format
Kwik Kit Safety Railing Kits	PDF Download

Additional Base Options

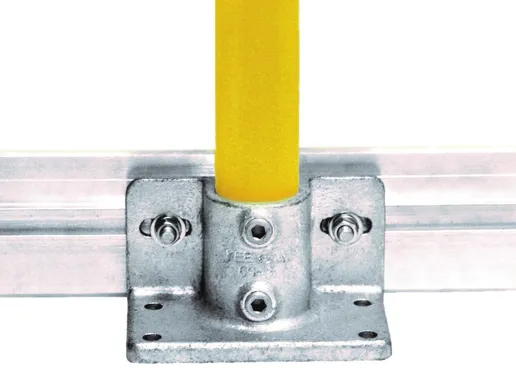

Toe Board Option: Kee Klamp^® Type 69

Stainless steel hardware included. Easy to install with no drilling or welding.

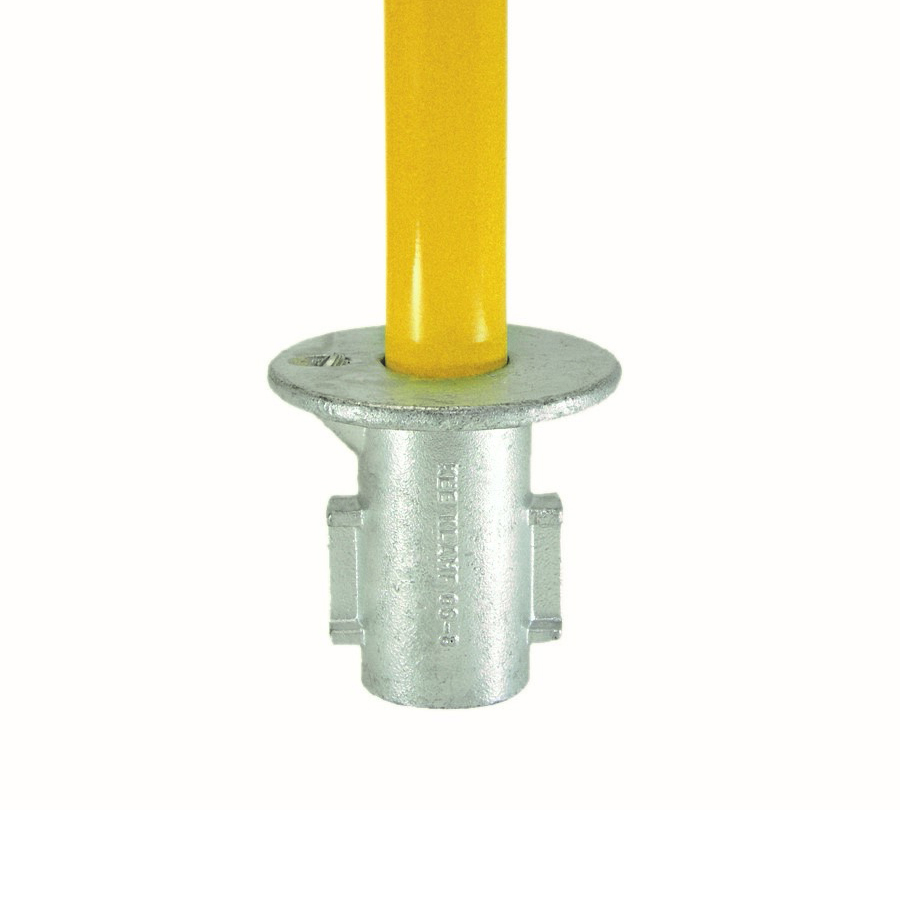

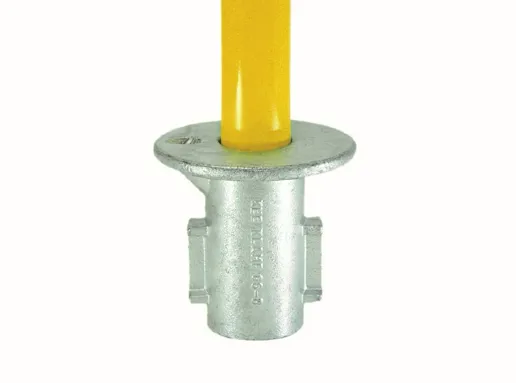

Ground Socket Option: Kee Klamp^®Type 66

Designed for concrete installations where uprights are required to be removable. It incorporates a socket set screw fixing on top of a flange and can be supplied with a plug to fill the hole when the tube is removed.

Frequently Asked Questions

General

- Does Kee Kwik have an Aluminium version?

  Yes, Kee Kwik is available in galvanised steel or aluminium.
- What types of Kee Kwik models are available?

  Kee Kwik Safety Railing Kits are available in nine model types: Steel or Aluminium Straight Kits, Steel or Aluminium Corner Kits, Steel or Aluminium Extension Kits, Steel Step Kits, Steel Ramp Kits and Steel Column Guard Kits.
