Kee Guard® Roof Top Guardrails

No barriers to a safer roof with Kee Guard safety railing

Kee Guard is the industry leading modular, roof top railing system. It has been designed to provide permanent roof edge protection for areas where regular access for maintenance and inspection is required. Kee Guard is an EN and OSHA compliant, permanent, and dependable safety barrier for a roof edge, helping you to keep your workforce safe.

A Comprehensive Range

The system is available for different roof types, either for use where a restraining wall such as a parapet is in place or where the rooftop is completely open around the perimeter. The KeeGuard^® rooftop guardrail system can be used for new constructions as well as for retrofitting older buildings.

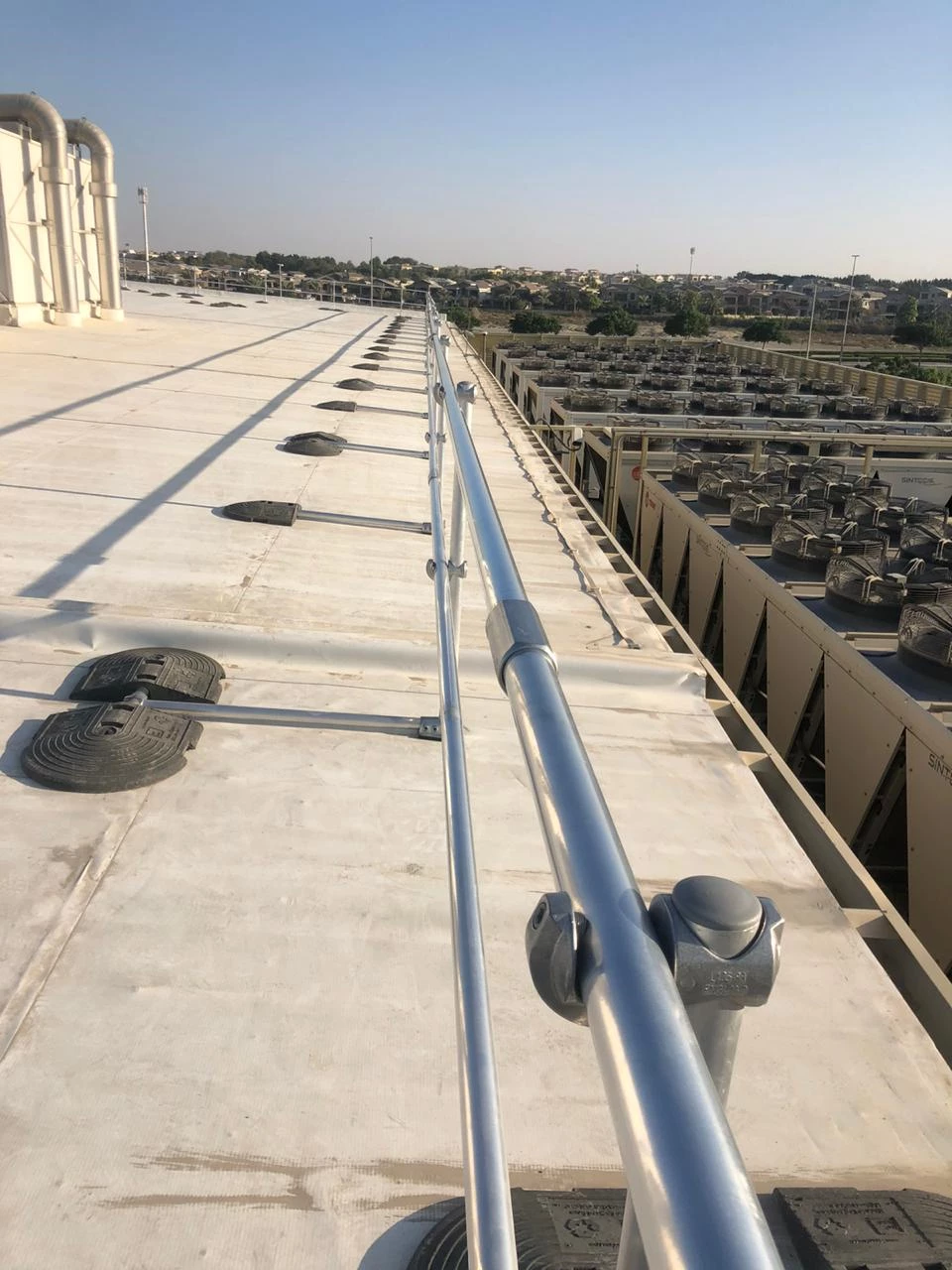

Kee Guard^® Free-standing Roof Edge Protection

Kee Guard^® Railing For Roofs With Limited Space

Kee Guard^® Guardrail for Metal Roofs

Kee Guard^® Rooftop Guardrail for Ladder Access Points

Why do you need Kee Guard Rooftop Guardrail?

The highest level of fall prevention

Roof guardrails are the most preferred fall protection systems as dictated in the hierarchy of control measures; they provide the highest level of collective fall prevention for roof access and work at height.

Highly versatile rooftop fall protection

Offers the best stability for all standard roof top fall protection systems including membrane, metal profile, and standing seam roofs. It’s also very flexible and can be used on everything from complex roof shapes to those that change in elevation. Roof top guardrail protection from Kee Guard separates your people from hazards.

Longevity is the Standard

The hot-dipped, galvanised finish is corrosion-resistant and requires little-to-no maintenance for safe, dependable, and trouble-free roof top guardrail edge protection. For harsher environments we offer Kee Guard systems utilising aluminium tube and uprights.

Quick and easy to install

To assemble Kee Guard, you will need a torque wrench or hex key, making it incredibly quick and easy to install. Once in place, it is a safe, versatile system that delivers reliable leading edge roof top fall protection.

Key features of Kee Guard Roof Top Railing

Non Penetrating Roof Top Guardrail System

Kee Guard provides passive fall protection without penetrating the roofing material.

Suitable For Many Roof Types

Free-standing systems can be fitted to concrete, asphalt, PVC, membrane and felt roof surfaces up to 10° pitch.

Collective Fall Protection for Pitched Cladded Roofs

Kee Guard Top Fix provides roof edge protection for metal profile and standing seam roofs up to 45°.

Compliant with International Safety Standards

Meets the world’s most rigorous safety standards for fall protection guardrail.

Modular Design

If your fall protection needs modification on-site (before or after installation), the system can easily be reconfigured.

Corrosion Resistant

Kee Guard systems are avialable in both galvanised and aluminium options. Both are ideal for harsh environments due to their high corrosion resistance.

Wind Calculated

Free-standing installations are wind speed calculated to ensure compliance with the relevant wind loadings relating to the topography, height and location of the project throughout the World.

Multiple Color Options

Available in a full range of powder-coated RAL colors to suit your building aesthetics.

Kee Safety was able to help overcome all the obstacles of working at a busy hospital, providing a great rooftop guardrail solution that will keep our roof warranty intact.

Ryan Molitor, Project Manager

Highest standards for off-the-ground safety railing solutions

EN ISO 14122 Part 3
EN 13374 Class A
BS 13700 : 2021
BS 6399: Part 2 1995 Wind Code
EN 1991-1-4
NF E85-003
OSHA Reg 29 CFR 1910.23 (E) (1); (E) (3) (IV)
OSHA Reg 29 CFR 1926.501 (b) (1); (b) (2) (ii)
OSHA Reg 29 CFR 1926.502 (B) (1) - (B) (14)
AS 1657:2018
Wind loading in accordance with AS/NZS 1170.2

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centers at its global headquarters. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.

Trusted Fall Protection for Recognized Brands

How Kee Guard is installed

See just how easy it is to install our Kee Guard free-standing edge protection system onto your roof space.

Frequently Asked Questions

- Are toeboards available on the Kee Guard system?

  Yes, a toeboard can be supplied at the customer’s request.
- Can Kee Guard be used as an anchor?

  The Kee Guard system is not intended as an anchor and cannot be used as an anchor or tie off point to support any workers or equipment suspended off the roof.
- Can the Kee Guard system be painted?

  Kee Guard components can be painted by the customer before or after installation. Kee Guard components are also available powder coated in any RAL color at the customer’s request (extra charges apply for powder coating). Powder coating takes place prior to shipment.
- Does the Kee Guard system comply with the current USA and EU safety regulations?

  The Kee Guard system has been tested to comply with and exceeds USA OSHA codes and EU EN standards.
- Does the Kee Guard system offer advantages over a horizontal life line system or harness system?

  Yes. Kee Guard Roof Edge Fall Protection Railing System is a passive, collective fall protection system that is preferred by safety consultants. Lives have been lost in work-related falls resulting from workers not using harnesses properly. The Kee Guard system removes the potential of that risk. Harness systems require training and proper and regular use. The embedded anchor for a harness system could later leak and cause costly water damage. The worry of not having enough harnesses for rooftop workers is eliminated.
- How do I buy the Kee Guard system?

  Each Kee Guard System is individually engineered for your premises. Contact us directly with the information on this website.
- Is Kee Guard more expensive than using a harness/tie-off system?

  When you consider the ongoing cost of training and system re-certification, the installed cost of Kee Guard is competitive with horizontal life line systems.
- Is Kee Guard required by law?

  Building owners and employers are responsible for protecting their workers from any hazard encountered while on the job. In jobs requiring access to roofs for maintenance purposes, fall protection is usually required if workers will be exposed to a fall hazard.
- Does Kee Guard need to be inspected or maintained after installation?

  Once properly installed, the Kee Guard system is considered a permanent installation. We recommend that any fall protection system be inspected on a routine basis for maximum liability protection for the building owner.
- Can the Kee Guard system be installed on a sloped roof?

  Free-standing Kee Guard systems can be used on any style of flat roofs with a slope up to 10 degrees. Kee Guard option designed for metal profile and standing seam roofs can be installed on pitched cladded roofs up to 45°.
- How long does it take to install Kee Guard? Are special skills or tools required?

  With the use of the Kee Guard open style fitting (standard), two workers with minimal experience and simple hand tools can be installed up to twice as fast as most other systems. All materials should be delivered to the rooftop using a hoist, crane or other mechanical methods. No power tools are required.
- Is Kee Guard intended for temporary or permanent installation?

  The system is intended as a permanent fall protection solution, however since it is a modular system, the system can be disassembled and moved if needed or for maintenance tasks.
- Are all the materials used in the Kee Guard system protected from corrosion?

  Galvanised tube is used for vertical, horizontal and counterbalance supports and Kee Klamp fittings are all galvanised at our factory. The grub screws used to assemble the fittings and tubes together are all protected by Kee Koat^® which is a special corrosion-resistant coating. We also offer a Kee Guard aluminium option, with fittings and tube made from aluminium. Kee Guard fall protection system is engineered using special fittings and is designed to withstand a full range of outdoor conditions.
- How does the Kee Guard system stay on the roof if it isn’t bolted through the roof membrane?

  The system employs a tested and proven counterbalance system, the Kee Guard system (Patents in effect) is a roof edge railing fall protection system that keeps the workers on the roof without endangering the roof membrane itself.
- What prevents the counterweights from sinking into tar/gravel roof surfaces in hot climates?

  Each KeeGuard counterbalance weighs only 13.3 Kg and has an insulating rubber pad on the underside which is installed at the factory. Each counterbalance is spaced sufficiently to make the entire system deliver less weight per square foot than the average worker who might have to walk on the roof.

Services

Design and Installation

We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you visualise the end result. With our detailed project outline, you can be confident that your project is professionally specified, and that all safety concerns and standards are addressed to your satisfaction.

Alternatively, you can specify and install most of our safety systems yourself with our easy-to-follow instructions – it all starts with a call to our knowledgeable staff!

Get in touch
