Kee Guard® ; Non-Penetrating Rooftop Guardrail for Ladder Access Points

Rooftop Guardrail Protection at a Dangerous Transition

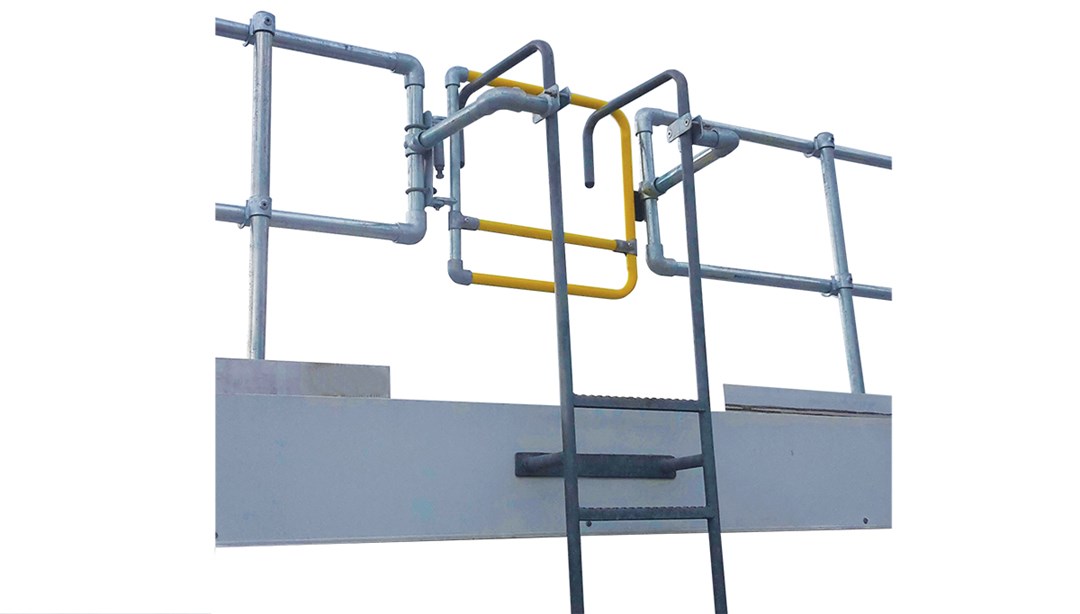

One of the most dangerous points of the roof is the transition point between the roof and the ladder. The Kee Guard^® access kit provides a layer of fall protection right where it's needed. The guard railing flanks the access point, ensuring a safe approach. Kee Gate^® is a self-closing safety gate that ensures that the ladder access point is approached intentionally. The surrounding supports of the safety railing ensures that there is plenty of support when making the transition on and off the roof. Kee Guard offers a comprehensive safety guardrail solution that works well with Kee Guard Access Ladder Kit.

Benefits & Advantages

Versatile and Easy to Install

There is no welding needed on-site, which means it can be installed with basic tools. Plus the components can be adapted to meet the unique design requirements of non-standard roof applications. Works well with a Kee Safety safety railing.

Safety Railing Roof Edge Protection

On a flat or low slope roof, a protected perimeter limits access to the leading edge. Installing a modular, free-standing safety railing system that does not penetrate the roof membrane provides a permanent, safe and dependable safety guardrail barrier for the roof edge.

Simple Rooftop Guardrail Solution

Instead of having to re-think each access point, Kee Guard^® provides you with a quick way to deploy a workable safety rail solution to a wide variety of rooftop environments.

Key Features

Fast installation

The kit is easy to install with a few simple hand tools, in most cases, no roof penetration is required.

Multiple connection types

Kee Guard^® can attach to flat, trapezoidal and standing steam roofs.

Compliant

Exceeds EN and OSHA standards for fall protection guardrails.

Corrosion resistant

All iron fittings are galvanised to EN ISO 1461 so the system will last for years without corrosion.

Highest standards for off-the-ground safety

EN ISO 14122 Part 3 & NF E85-003
EN 13374 Class A
BS 13700 : 2021
OSHA Reg 29 CFR 1910.23 (E) (1); (E) (3) (IV)
OSHA Reg 29 CFR 1926.501 (b) (1); (b) (2) (ii)
OSHA Reg 29 CFR 1926.502 (B) (1) - (B)

HSG-33 Health & Safety in Roof Work
HSE INDG 284 “Working on roofs”
BS 6399: Part 2 1995 Wind Code
AS 1657 : 2018
Wind loading in accordance with AS/NZS 1170
All installations are wind speed calculated to Eurocode 1: Actions on structures - Part 1-4: General actions - Wind load

Frequently Asked Questions

General

- Can I use alternative fall protection methods (e.g. anchor points) as protection at rooftop access points?

  No. EN 14122 states that: “To prevent falling through the access opening at arrival areas the opening shall be provided with a gate. It also states that at “drop edges of arrival areas”, a Guardrail should be provided at least 1.5m either side of the ladder, or if the drop edge is less than 3m in length, then one should protect the entire edge.
- I currently use a chain to protect my fixed ladder – is this OSHA compliant?

  No. OSHA no longer considers chains to be an effective fall protection solution. The reason for this is simple – standing on a ladder and reattaching the chain during roof egress while maintaining 3 points of contact on the ladder is a dangerous activity with fatal potential.
- Will the gate pinch my fingers while I climb through the top of the ladder?

  The gate on Kee Guard Rooftop Guardrail for Ladder Access Points is attached to the railing and not the ladder. This enables you to transition onto the roof and push through the gate with your body – no hands needed!
- Can the Kee Guard Rooftop Guardrail for Ladder Access Points be designed as a “shoot” to direct traffic to the center of the roof?

  Yes, Kee Guard Rooftop Guardrail for Ladder Access Points can be installed along the roof edge to protect the fall hazard, or in 2 parallel lines to direct traffic to the center of the roof.
- Is protection needed on ladders between roof levels?

  OSHA requires all access points 1.2m or higher above an adjacent level to be protected, regardless if the lower level is a roof, the ground, or a work platform.
- How does the railing attach to the sides of the ladder?

  Our clamps are designed to clamp onto nearly any ladder style, no drilling or welding necessary.
