Mini Step Over Kits
Navigating a roof across pipework, low level walls, changes in levels and installed equipment can present a problem. KEE WALK mini step overs offer a solution.
Mini Step Over Kits from Kee Safety eliminate the fall hazard on roofs where low level obstacles exist, e.g. pipework, tube, cable trays or wires. Mini step modules can also protect cable trays and pipework, which are often fragile and can be damaged when trodden on, saving you money on repairs.
KEE WALK Mini Step Overs are low maintenace, made from galavnised steel or aluminium extrusion and reinforce nylon treads. The product is available in a kit form, in various sizes and finishes.
KEE WALK Mini Step Overs have been tested and are compliant to EN 516 Class 1-C.
Mini Step Over Kit Options
- Two height clearance options: 200mm and 400mm
- Three lengths available: 3, 4 and 5 tread options
- Two fixing options: free standing and fixed

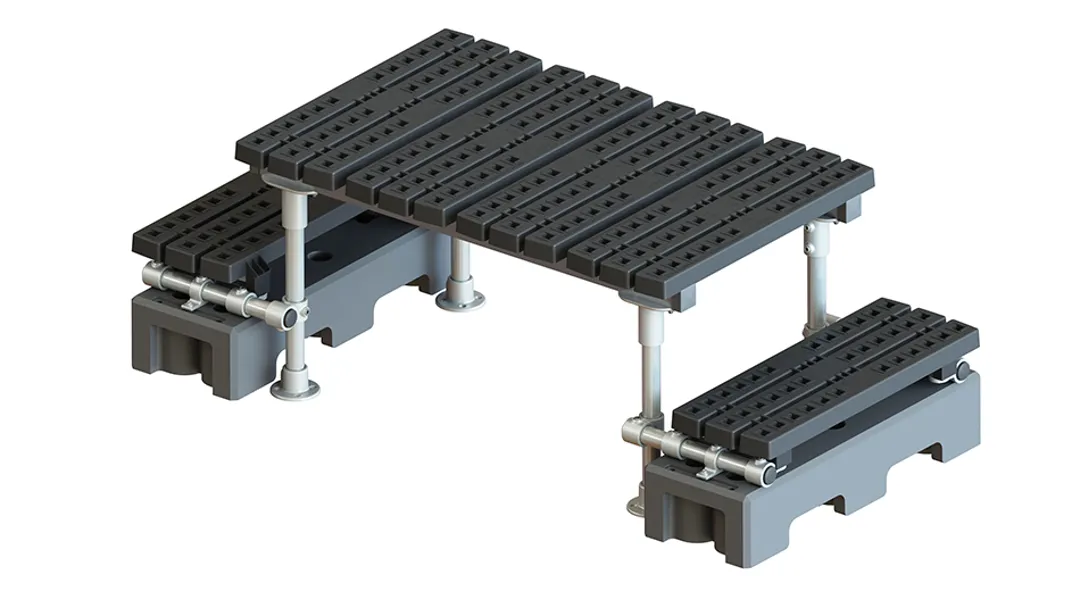

Free standing mini step overs
- Free standining mini step modules
- Freestanding featuring 2no. 26kg base weights, with the smallest unit withstanding wind uplift speeds of 111 mph
- Built to span 240mm – 740mm
- Height clearance between 200 - 400mm
- Compliant to EN 516
- Materials – Steel, Aluminium, Recycled PVC & Nylon
- Supplied partially assembled.
| PRODUCT CODE | CLEARANCE HEIGHT X LENGTH | LENGHT | TOTAL WIDTH | TOTAL HEIGHT | CLEARANCE HEIGHT |
|---|---|---|---|---|---|
| STMFX2003 | 200 x 463mm | 720mm | 680mm | 275mm | 200mm |
| STMFX2004 | 200 x 713mm | 970mm | 680mm | 275mm | 200mm |
| STMFX2005 | 200 x 963mm | 1220mm | 680mm | 275mm | 200mm |
| STMFX4003 | 400 x 463mm | 1161mm | 680mm | 490mm | 400mm |
| STMFX4004 | 400 x 713mm | 1411mm | 680mm | 490mm | 400mm |
| STMFX4005 | 400 x 963mm | 1661mm | 680mm | 490mm | 400mm |
Fixed mini step overs
- Fixed option requires fixing to roof structure
- Built to span 463mm – 963mm
- Height clearance between 200 - 400mm
- Compliant to EN 516
- Materials – Steel, Aluminium & Nylon
- Supplied flat packed partially assembled.
| PRODUCT CODE | CLEARANCE HEIGHT X LENGTH | LENGHT | TOTAL WIDTH | TOTAL HEIGHT | CLEARANCE HEIGHT |
|---|---|---|---|---|---|
| STMFX2003 | 200 x 463mm | 720mm | 680mm | 275mm | 200mm |
| STMFX2004 | 200 x 713mm | 970mm | 680mm | 275mm | 200mm |
| STMFX2005 | 200 x 963mm | 1220mm | 680mm | 275mm | 200mm |
| STMFX4003 | 400 x 463mm | 1161mm | 680mm | 490mm | 400mm |
| STMFX4004 | 400 x 713mm | 1411mm | 680mm | 490mm | 400mm |
| STMFX4005 | 400 x 963mm | 1661mm | 680mm | 490mm | 400mm |
Compliance
KEE WALK Mini Step Over Kits have been tested to EN 516 : 2006 - Prefabricated accessories for roofing. Installations for roof access. Walkways, treads and steps. Both product configurations free standing and fixed passed tests.
For wider or higher obstacles, Kee Safety Singapore offers standardised off-the-shelf step over kits. We can also design and supply bespoke step over platforms.
Contact us to discuss your safe access solution project details today!
