Kee Walk® Step Over Platform Kits

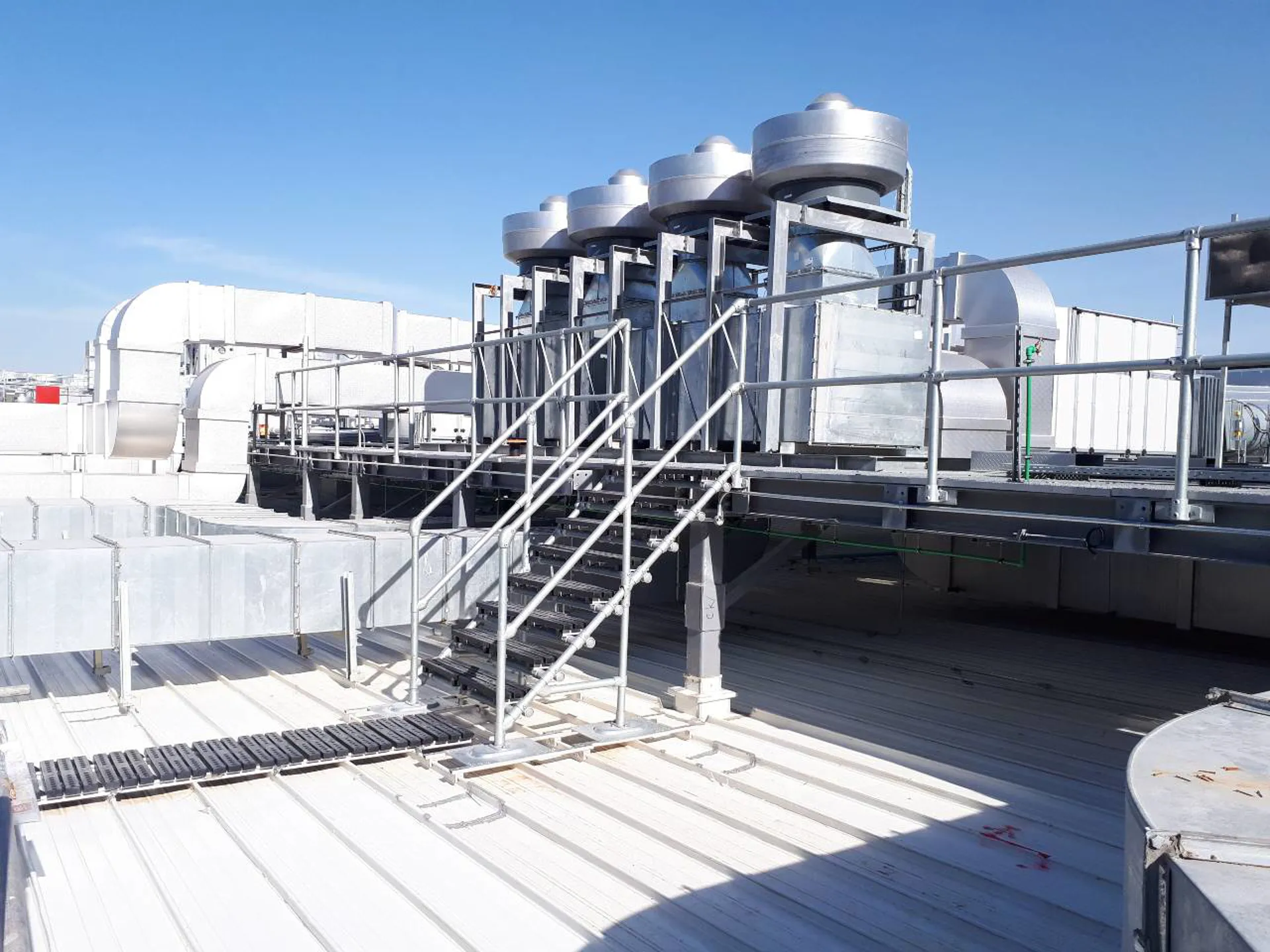

A range of modular, off the shelf step-overs available in kit form, that provide a safe means of access where obstructions exist on a roof such as pipework, plant equipment and conduits. Suitable for use on a variety of roof types and surfaces KEE WALK Step Overs accommodate changes in roof levels to offer a safe, anti-slip, level walking surface onto and across roofs.

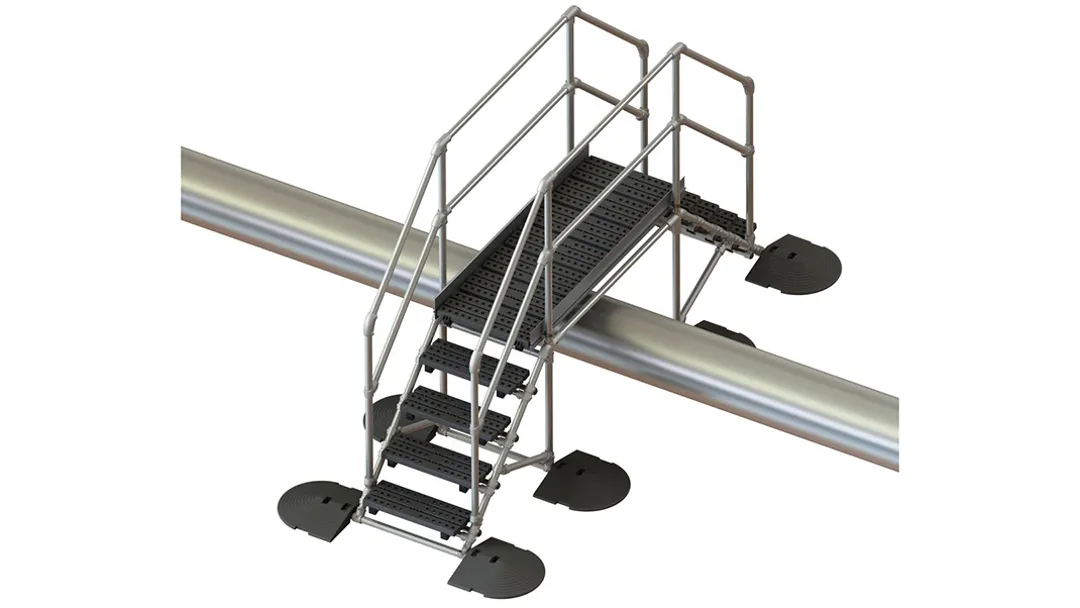

Our Step Over Kits are available in a range of sizes, for obstacles ranging from 600mm up to 1400mm in height. Each kit includes a double handrail and toe-boards for added safety, nylon treads and base feet options to suit different roof types.
- Standard kits available from stock
- Suitable for membrane, asphalt, concrete and PVC roofs
- Can also be used in warehouses, factories and other industrial plants
- Built using KEE KLAMP fittings
- Delivered part assembled
- Includes double handrail
- Designed in accordance with BS EN 14122-3
Step Over Kits - Available Options
STEP OVERS FOR MEMBRANE / ASPHALT / PVC ROOFS
| Obstacle Height (mm) | Obstacle Width (mm) | Foot Type | Working Height | Part Number |
|---|---|---|---|---|
| 600 | 1000 | 440-7 | 800 | STMB600 |
| 800 | 1000 | 440-7 | 1000 | STMB800 |
| 1000 | 1000 | 440-7 | 1200 | STMB1000 |
| 1200 | 1000 | 440-7 | 1400 | STMB1200 |
| 1400 | 1000 | 440-7 | 1600 | STMB1400 |
| 1200 | 1200 | 440-7 | 1400 | STMB1212 |
| 1400 | 1400 | 440-7 | 1600 | STMB1414 |
STEP OVERS FOR CONCRETE FLOORS / RESTRICTED ACCESS ROOFS*
| Obstacle Height (mm) | Obstacle Width (mm) | Foot Type | Working Height | Part Number |
|---|---|---|---|---|
| 600 | 1000 | 62-7/63-7 | 800 | STCR600 |
| 800 | 1000 | 62-7/63-7 | 1000 | STCR800 |
| 1000 | 1000 | 62-7/63-7 | 1200 | STCR1000 |
| 1200 | 1000 | 62-7/63-7 | 1400 | STCR1200 |
| 1400 | 1000 | 62-7/63-7 | 1600 | STCR1400 |
| 1200 | 1200 | 62-7/63-7 | 1400 | STCR1212 |
| 1400 | 1400 | 62-7/63-7 | 1600 | STCR1414 |
*Concrete slab and elastomeric pad to be used on membrane/asphalt/PVC roofs to spread the imposed load from the platform.
BESPOKE STEP OVER PLATFORMS are also available, please contact us to discuss your requirements.
